● Hook and Loop Sanding Pads: The Efficient Choice for Modern Sanding
>> What are Hook and Loop Sanding Pads?
>> The Hook and Loop System: Working Principle and Design Advantages
>> Industry Terminology and Performance Parameters
>> Application Areas and JieHuan's Advantages
Hook and Loop Sanding Pads (also often referred to as Hook and Loop Sanding Discs) are a key innovation in the field of modern abrasive tools. They integrate Abrasive Paper or Abrasive Material with a Hook and Loop Fastener System, fundamentally transforming how sanding discs are mounted and changed. This design significantly enhances the efficiency, convenience, and safety of sanding operations, making them the preferred choice across numerous industries, including woodworking, automotive repair, and metal fabrication.

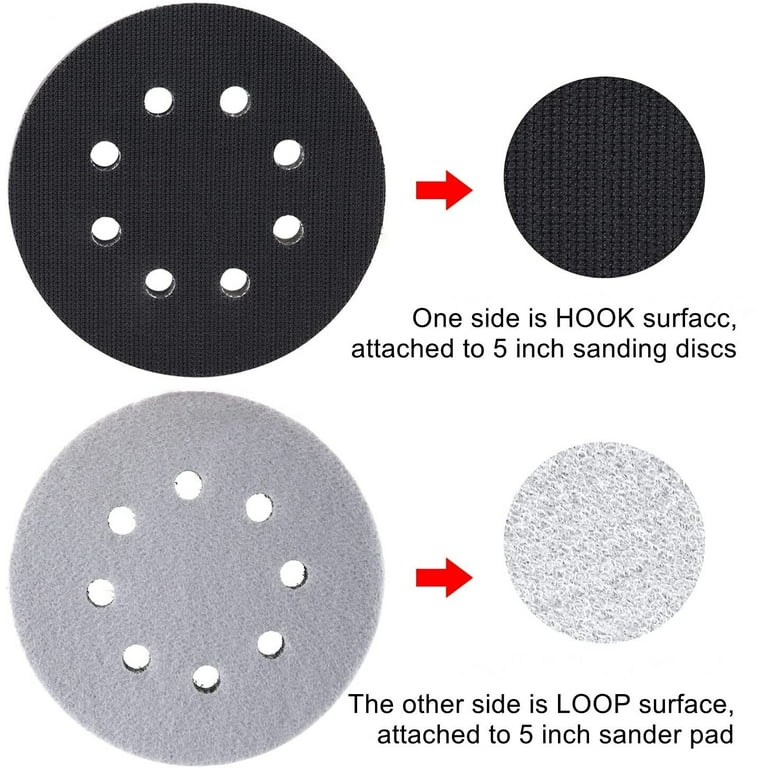

A hook and loop sanding pad is an abrasive tool composed of two main parts:
Sanding Disc Body: This is the circular abrasive paper or material, featuring abrasive grains (such as aluminum oxide, silicon carbide, zirconium oxide, etc.). The back of the sanding disc is covered with Loop Side material, typically soft loops made of nylon or polyester fibers.
Backing Pad/Disc Pad: This is a circular support component mounted on an electric or pneumatic sanding tool (e.g., random orbital sanders, angle grinders). Its surface is covered with Hook Side material, which corresponds to the loop side of the sanding disc.

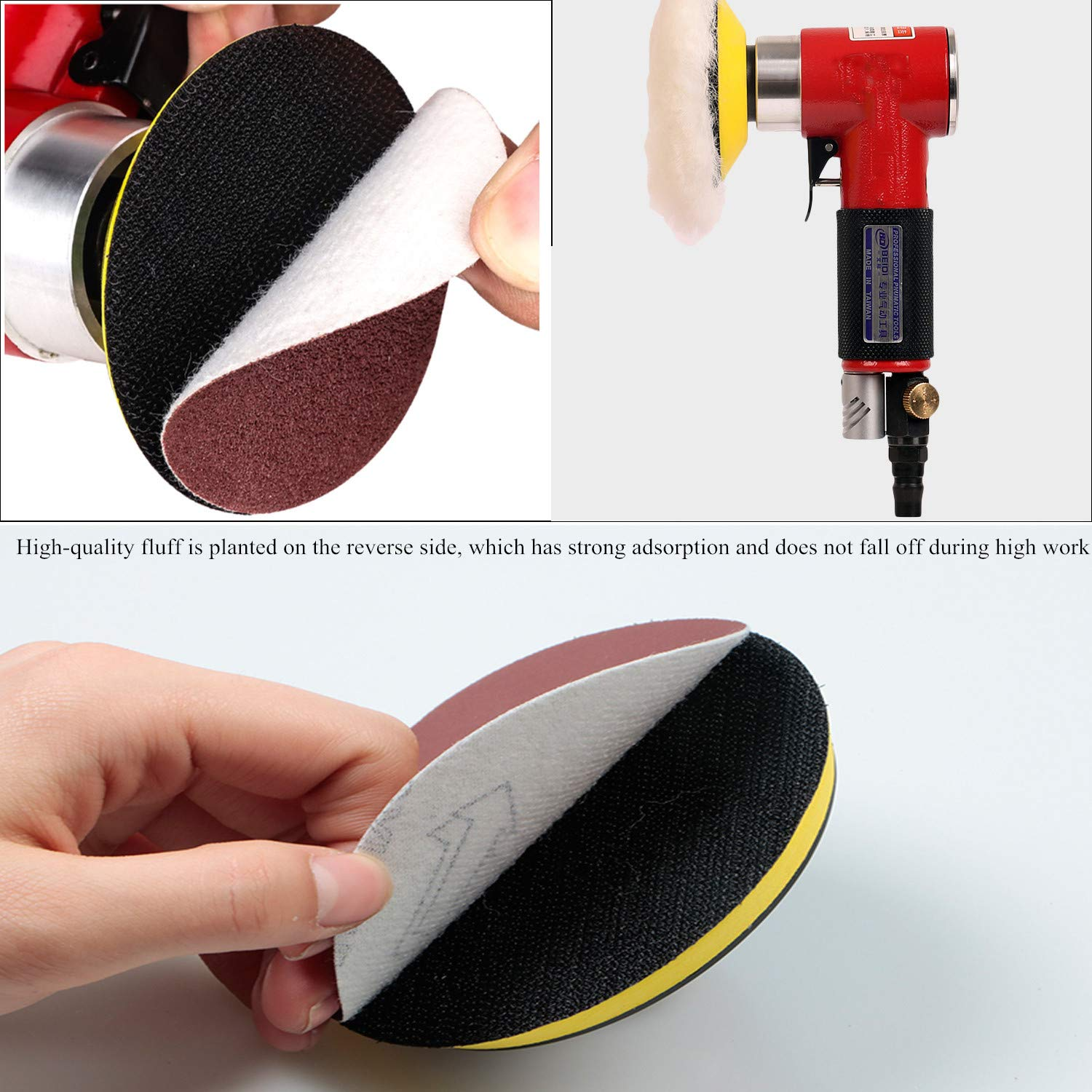

When the loop side of the sanding disc body is pressed against the hook side of the backing pad, they form a secure Mechanical Bond. This attachment method allows for exceptionally quick installation and removal of sanding discs, eliminating the need for bolts, clamps, or adhesives, thereby significantly reducing downtime.
The core of hook and loop sanding pads lies in their Hook and Loop Fastener System. It draws inspiration from nature, specifically how burdock burrs adhere to animal fur, using tiny hooks and loops for quick, reusable connections.
When a user presses the sanding disc body (loop side) onto the backing pad (hook side), the countless tiny loops on the back of the disc intricately intertwine and lock with the micro hooks on the surface of the backing pad. While individual connection points might not be strong, their sheer number (potentially hundreds or thousands of hooks and loops per square inch) collectively provides immense overall Adhesion Strength. When it's time to change the disc, a simple pull separates the hooks and loops without damaging the materials, ensuring Reusability.
Quick Change: This is the most significant advantage offered by the hook and loop system. Operators can swap sanding discs in an instant, without complex tools or time-consuming mounting/dismounting procedures. This is particularly crucial in sanding tasks that require frequent changes in Grit Size, such as transitioning from coarse to fine sanding, greatly boosting efficiency.
Precise Alignment: The hook and loop system allows for a certain degree of micro-adjustment of the disc, ensuring it remains accurately centered and stable during sanding operations. This helps reduce Runout and uneven wear during sanding, leading to a smoother, more consistent finish.
Reusability: Before the sanding disc wears out, it can be removed and reattached multiple times, making it convenient for cleaning dust generated during sanding (especially for dust-extraction discs with a Hole Pattern) or for inspecting the sanded surface, without compromising the connection strength.
Reduced Heat Build-up: Compared to traditional adhesive-backed sanding discs, the hook and loop system typically offers better breathability. This airflow helps dissipate heat generated during the sanding process, extending the Service Life of the sanding disc itself and minimizing potential heat damage to the workpiece.
Simplified Manufacturing and Logistics: For sanding disc manufacturers, the introduction of the hook and loop system simplifies production processes, reduces the need for adhesives, and also facilitates product packaging, storage, and transportation.
When evaluating and selecting hook and loop sanding pads, the following industry terms and performance parameters are crucial, as they directly reflect the performance of the hook and loop system:
| Term/Parameter | Definition | Influencing Factors | Typical Applications | |
| Grit Size | The fineness or coarseness of the abrasive grains; higher number means finer grit. | Sanding efficiency, surface finish | P40-P80 (coarse), P120-P220 (medium), P400+ (fine/polishing) | |
| Pad Diameter | The size of the sanding pad. | Applicable tools, sanding area | 5 inches (125mm), 6 inches (150mm) most common | |

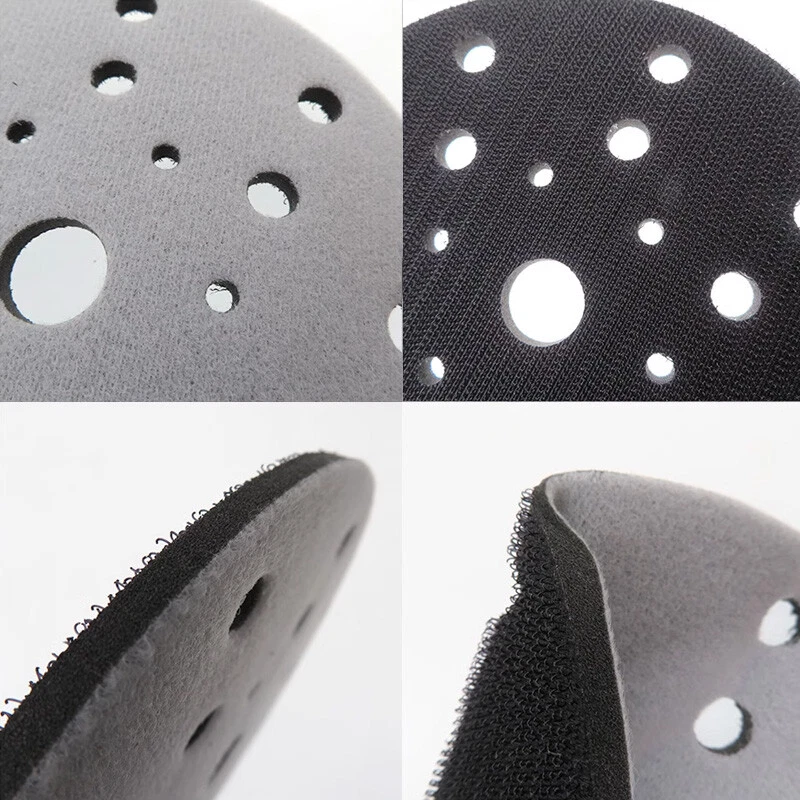

| Hole Pattern | The arrangement of dust extraction holes on the pad. | Dust removal efficiency | 5-hole, 6-hole, 8-hole, multi-hole (e.g., multi-hole star) | |
| Pad Hardness | The softness or rigidity of the abrasive backing pad. | Surface conformity, sanding effect | Soft (contoured/fine sanding), Medium (general-purpose), Hard (flat/coarse sanding) | |
| Hook and Loop Life | The number of attachment/detachment cycles the hook and loop system can endure while maintaining effective adhesion. | Quality of hook and loop materials, frequency of use | 1,000 - 5,000 peel cycles (depending on quality) | |
| Abrasive Material | The type of abrasive grain used on the pad. | Sanding efficiency, durability, applicable materials | Aluminum Oxide, Silicon Carbide, Zirconia Alumina, Ceramic Abrasives, etc. | |
| Peel Strength | The force required to peel the pad from the backing pad. | Hook and loop engagement strength, determines if pad easily detaches | Approx. 10-25 N/cm (depending on application) |
Table 1: Sanding Pad Grit Size Selection Recommendations for Different Applications
| Application Scenario | Purpose | Recommended Grit Range | Common Abrasive Materials |
| Heavy Material Removal | Removing old paint, rust, rough surfaces | P40 - P80 | Aluminum Oxide, Zirconia Alumina |
| General Sanding | Flattening surfaces, removing scratches | P100 - P220 | Aluminum Oxide |
| Fine Sanding | Preparing for coating, pre-polishing | P320 - P600 | Aluminum Oxide, Silicon Carbide |
| Super Fine/Polishing | Mirror finishing, clear coat refinement | P800 - P3000+ | Aluminum Oxide, Silicon Carbide |
Hook and loop sanding pads are widely used in:
Woodworking: Furniture manufacturing, floor refinishing, wood surface preparation.
Automotive Industry: Car body repair, paint preparation, clear coat polishing.
Metalworking: Deburring, surface finishing, weld grinding.
Composite Materials: Sanding fiberglass, carbon fiber.
Construction & Home Renovation: Wall sanding, drywall finishing.
JieHuan is a professional supplier of hook and loop fasteners with extensive experience in providing high-quality Hook Side and Loop Side materials for the sanding pad industry.
Our products feature:
Exceptional Hook and Loop Life: JieHuan's hook and loop materials are specially treated to withstand thousands of Peel Cycles without degradation in performance, ensuring sanding pads can be frequently changed without affecting adhesion.
High Bond Strength: Our manufactured hook and loop materials provide consistent Peel Strength and Shear Strength, ensuring the sanding pad remains firmly attached during high-speed rotation and intensive sanding operations.
Diverse Specifications: JieHuan can supply hook and loop products of varying densities, thicknesses, and materials to meet the customized needs of sanding pad manufacturers for both backing pads and the loop side on the back of the sanding pad body.
Customization Solutions: Whether it's matching specific Hole Patterns or optimizing hook and loop for particular Abrasive Materials and application environments, JieHuan offers professional custom services.
By incorporating JieHuan's high-quality hook and loop fastener materials, sanding pad manufacturers can produce hook and loop sanding pads with superior performance, easier changing, and longer service life, thereby helping users achieve higher efficiency and more perfect sanding results.
