Hook and Loop Sanding Discs are indispensable tools in modern sanding, central to which is the convenient and fast Hook and Loop Fastener System. This system has revolutionized the mounting and changing of sanding discs, significantly boosting the efficiency and ease of sanding operations. JieHuan, as a specialized Hook Side supplier, focuses on providing exceptional hook side materials for backing pads, ensuring stable and reliable disc attachment during high-speed operations, thereby delivering a smoother and more efficient experience for sanding users.

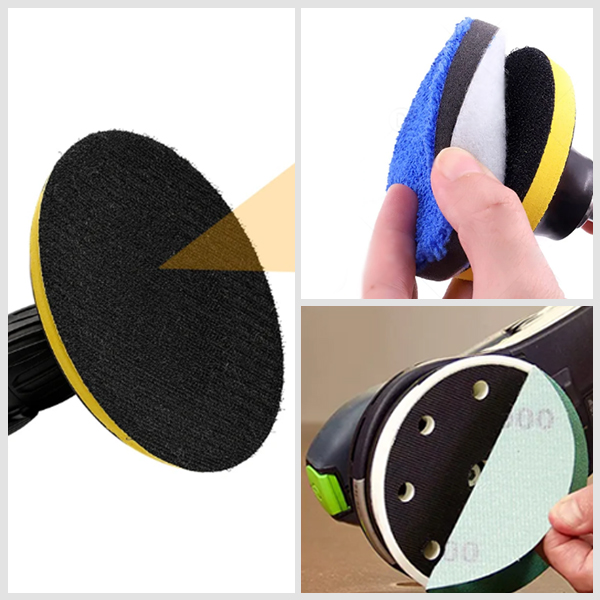

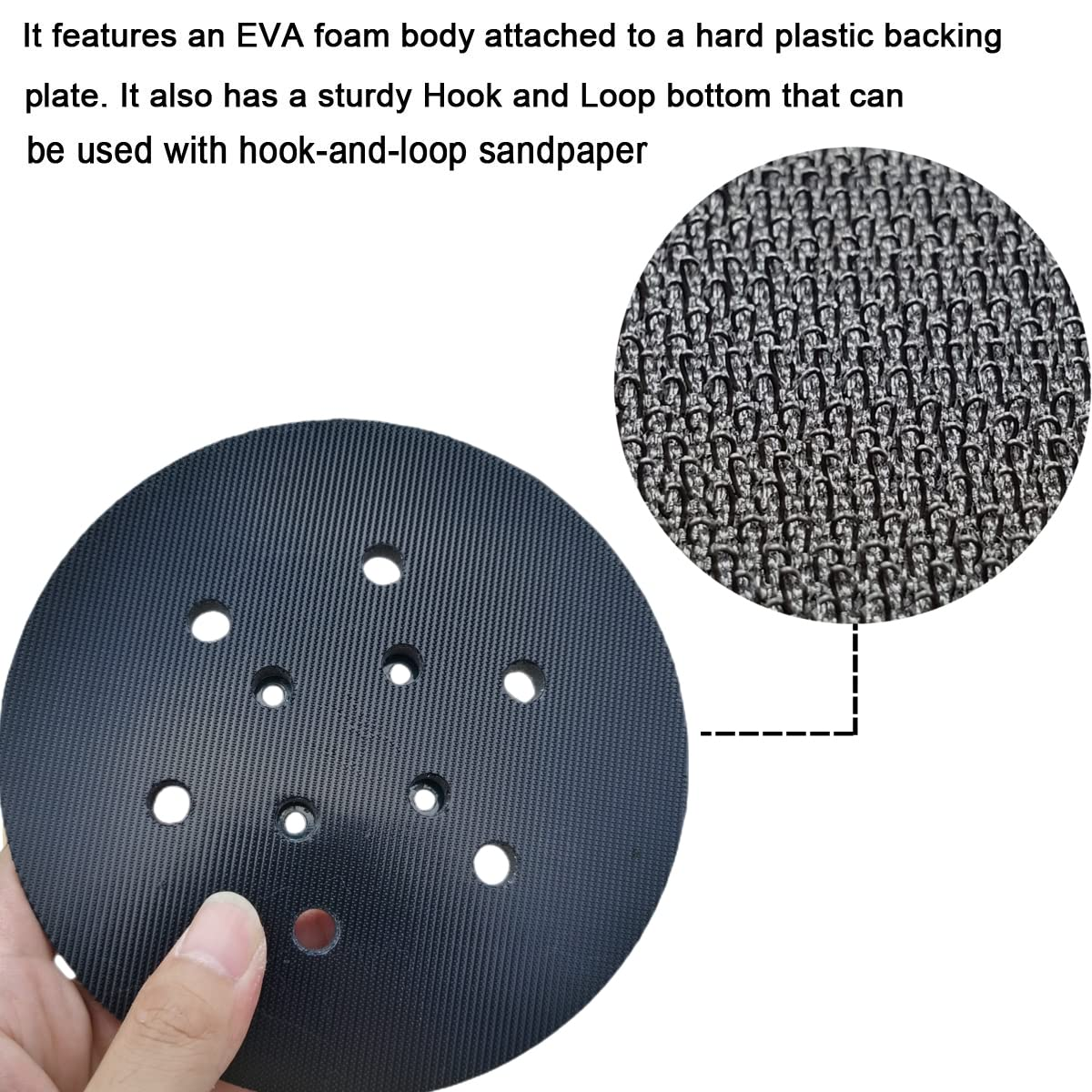

A hook and loop sanding disc consists of two parts: the sanding disc body (with a loop side on its back, featuring abrasive material) and the backing pad (with a hook side on its surface), which is mounted on a sanding tool.
Its core principle lies in the mechanical bond formed when the Loop Side of the sanding disc body is pressed onto the Hook Side of the backing pad. The countless micro hooks on the backing pad intricately engage and interlock with the soft loops on the back of the sanding disc. This connection method allows for exceptionally quick installation and removal of sanding discs, eliminating the need for traditional bolts, clamps, or adhesives, which drastically reduces downtime.
The core value of the hook and loop system is evident in:
Ultimate Quick Change: Operators can instantly swap sanding discs of different Grit Sizes, enabling seamless transitions between coarse, medium, and fine sanding, greatly enhancing sanding efficiency.
Exceptional Stability: High-quality hook sides provide strong Adhesion Strength and Shear Strength, ensuring the sanding disc remains firmly attached during high-speed rotation and intensive operations, guaranteeing both operational safety and sanding precision.
Precise Alignment: A good match between the hook and loop sides helps the sanding disc to be accurately centered upon installation, reducing Runout during sanding and resulting in a more even and consistent finish.
Optimized Heat Dissipation: Compared to traditional adhesive-bonded discs, the hook and loop system typically allows for better airflow. This ventilation helps dissipate heat generated during the sanding process, extending the Service Life of both the sanding disc and the tool.
The core of hook and loop sanding discs lies in their Hook and Loop Fastener System. It draws inspiration from nature, specifically how burdock burrs adhere to animal fur, using tiny hooks and loops for quick, reusable connections.
When a user presses the sanding disc body (loop side) onto the backing pad (hook side), the countless tiny loops on the back of the disc intricately intertwine and lock with the micro hooks on the surface of the backing pad. While individual connection points might not be strong, their sheer number (potentially hundreds or thousands of hooks and loops per square inch) collectively provides immense overall Adhesion Strength. When it's time to change the disc, a simple pull separates the hooks and loops without damaging the materials, ensuring Reusability.
Quick Change: This is the most significant advantage offered by the hook and loop system. Operators can swap sanding discs in an instant, without complex tools or time-consuming mounting/dismounting procedures. This is particularly crucial in sanding tasks that require frequent changes in Grit Size, such as transitioning from coarse to fine sanding, greatly boosting efficiency.
Precise Alignment: The hook and loop system allows for a certain degree of micro-adjustment of the disc, ensuring it remains accurately centered and stable during sanding operations. This helps reduce Runout and uneven wear during sanding, leading to a smoother, more consistent finish.
Reusability: Before the sanding disc wears out, it can be removed and reattached multiple times, making it convenient for cleaning dust generated during sanding (especially for dust-extraction discs with a Hole Pattern) or for inspecting the sanded surface, without compromising the connection strength.
Reduced Heat Build-up: Compared to traditional adhesive-backed sanding discs, the hook and loop system typically offers better breathability. This airflow helps dissipate heat generated during the sanding process, extending the Service Life of the sanding disc itself and minimizing potential heat damage to the workpiece.
Simplified Manufacturing and Logistics: For sanding disc manufacturers, the introduction of the hook and loop system simplifies production processes, reduces the need for adhesives, and also facilitates product packaging, storage, and transportation.
In the performance of hook and loop sanding discs, the Hook Side plays a vital role. It is the determining factor for both Adhesion Strength and Hook and Loop Life. A high-quality hook side should possess the following characteristics:
Hook Shape and Density: The shape of the hooks (e.g., mushroom-head hooks, J-hooks) and the number of hooks per square inch (Hook Density) directly influence the firmness of engagement and peel strength.
Material Toughness and Elasticity: The hook material must possess sufficient toughness to resist breakage while maintaining appropriate elasticity to effectively regain its shape and re-engage after multiple Peel Cycles.
Abrasion and Temperature Resistance: Due to the high temperatures and friction generated during sanding, the hook side material must exhibit excellent Abrasion Resistance and Temperature Resistance to ensure long-term performance and Reliability.
JieHuan specializes in the research and production of high-quality hook side materials for hook and loop sanding disc backing pads. We understand that the hook side is the foundation of the entire hook and loop system's performance, and thus we are committed to providing industry-leading solutions that help sanding disc manufacturers enhance their product competitiveness.
Exceptional Hook and Loop Life: Our hook side materials are formulated and precisely manufactured to withstand thousands, even tens of thousands, of Peel Cycles without performance degradation. This means sanding disc manufacturers can produce durable discs that can be frequently changed while maintaining strong Adhesion Strength, greatly enhancing the end-user experience.
Superior Adhesion and Stability: JieHuan's hook side provides excellent Peel Strength and Shear Strength, ensuring that sanding discs remain firmly attached during high-speed, high-pressure sanding operations, effectively enhancing sanding efficiency and safety.
Diverse Specifications and Customization Capabilities: We offer a variety of Hook Density, Backing Material, and thickness options to meet the needs of different backing pad designs and sanding applications. Whether it's matching specific Hole Patterns or optimizing the hook side for particular Abrasive Materials and sanding pressures, JieHuan can provide professional Customization Services.
Environmental Adaptability: JieHuan's hook side materials exhibit outstanding Abrasion Resistance, Temperature Resistance, and Chemical Resistance, ensuring they maintain their Hook and Loop Engagement performance even in demanding sanding environments.
| Hook Side Performance (JieHuan Advantage) | Description | Typical Values (Industry Leading) | Customer Benefits |
| Hook and Loop Life | Number of peel/attach cycles the hook side can endure | ≥ 8,000 - 15,000 cycles | Reduced replacement costs, increased productivity |
| Peel Strength | Force required to separate hook from loop (with quality loop) | ≥ 15 - 30 N/cm | Disc stays on, enhanced safety |
| Shear Strength | Force required to slide hook from loop (with quality loop) | ≥ 60 - 120 N/cm² | More stable disc, more even sanding |
| Temperature Resistance | Ability of hook side material to maintain performance at high temps | Up to 100°C - 150°C | Suitable for high-intensity, long-duration sanding |
By choosing JieHuan's high-quality hook side materials, sanding disc manufacturers can ensure their products deliver superior performance and reliability, providing end-users with a safer, more efficient, and professional sanding experience.
