Hook and Loop Tape, commonly known as Velcro, is an incredibly versatile and Reusable mechanical fastening system. Its Convenience makes it ubiquitous in daily life. Whether for securing items, organizing cables, or replacing traditional fasteners, mastering its correct usage maximizes its Adhesion Strength and Cycle Life. This guide will detail how to effectively use hook and loop tape, incorporating industry terms and practical tips.

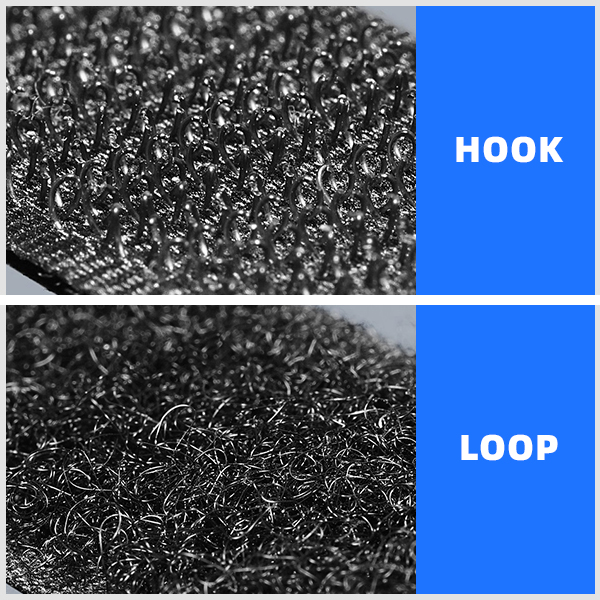

Before use, it's essential to understand the two core components of hook and loop tape:
1.Hook Side: The surface is covered with tiny, rigid "hooks."
2.Loop Side: The surface consists of soft "loops" or "circles."
When pressed together, the hooks embed within the loops, forming a strong Mechanical Bond.
The application method for hook and loop tape varies slightly depending on its type (with or without adhesive backing).
1. Using Non-Adhesive Hook and Loop Tape (Sewing or Heat Sealing)
This type of hook and loop tape typically needs to be attached to a substrate via sewing, heat sealing, or high-frequency welding.
Main Steps:
a.Measure and Cut: Precisely measure and cut the desired length of both hook and loop sides according to your needs.
b.Positioning: Place the hook and loop sides separately on the fabric or material to be joined, ensuring accurate positioning.
c.Attachment Method:
Sewing: Use a sewing machine or hand-sew along the edges of the hook and loop tape to firmly attach it to the fabric. Durable polyester thread is recommended, and ensure the stitch density is sufficient to withstand Peel Force and Shear Force.

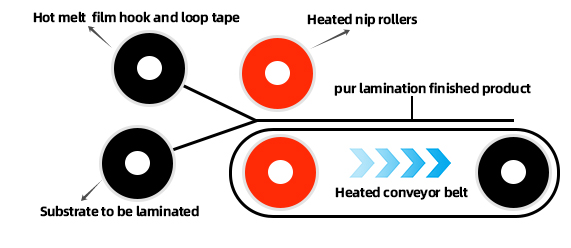

Heat Sealing/Welding: For certain plastic or non-fabric materials, hook and loop tape can be secured through heat sealing or high-frequency welding techniques. This usually requires specialized equipment.
2. Using Self-Adhesive Hook and Loop Tape (Adhesive-backed Hook and Loop)
Self-Adhesive Hook and Loop Tape, also known as Adhesive-backed Hook and Loop, is the most common type for everyday applications. Its ease of use is its biggest advantage.
Key Steps:
A.Surface Preparation – Crucial!
Clean: Thoroughly clean the surface where the tape will be applied using alcohol (like Isopropyl Alcohol/IPA) or a specialized surface cleaner. Ensure all dust, grease, dirt, and moisture are removed. An unclean surface is the number one cause of adhesion failure.
Dry: Make sure the surface is completely dry before proceeding with application. Any residual moisture will significantly reduce the adhesive's Bond Strength.
Smooth: For rough or uneven surfaces, it's advisable to sand them smooth first to maximize the contact area between the adhesive and the surface.
2.Measure and Cut:
Precisely measure and cut the hook and loop sides according to your needs. Try to avoid touching the adhesive layer directly with your hands.

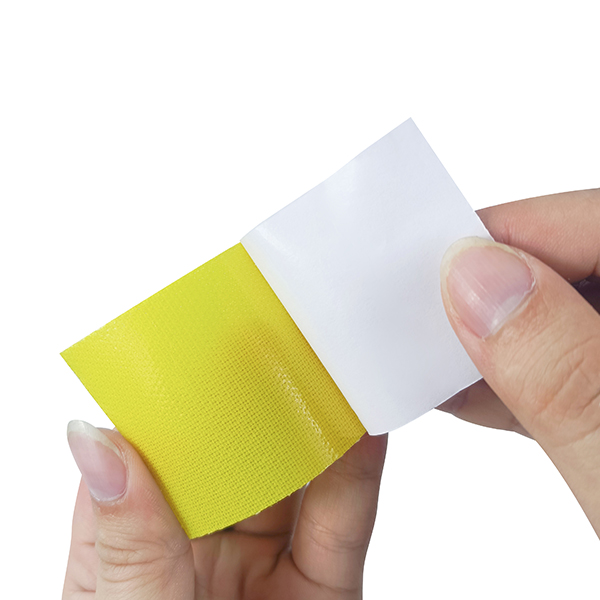

3.Remove the Release Liner:
Carefully peel off the Release Liner from the back of the hook or loop side to expose the adhesive layer. Avoid touching the adhesive during this process to prevent leaving fingerprints or oils.
4.Align and Apply Precisely:
Accurately align the adhesive-backed hook and loop tape to your intended position. Once applied, repositioning can be difficult and may compromise the Initial Tack.
Start from one end and slowly and evenly press the tape firmly onto the surface. Avoid creating air bubbles.

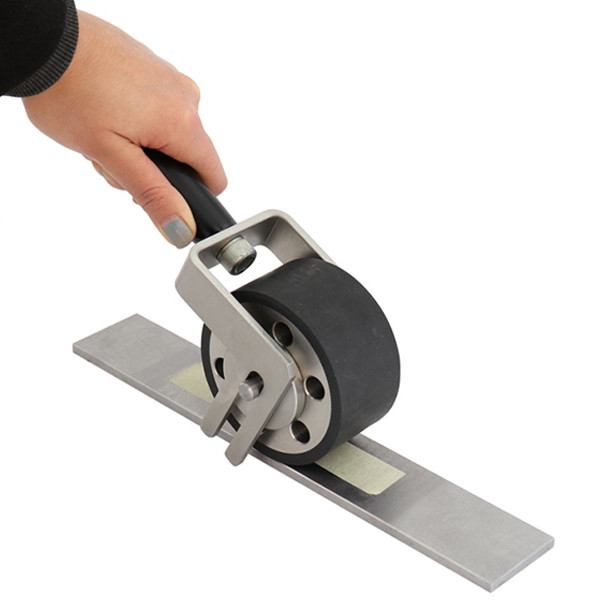

5.Apply Firm, Even Pressure – A Critical Step!
Use a firm tool (such as a squeegee, roller, or even your thumb) to apply sufficient Even Pressure along the entire length and width of the tape. Pressure helps the adhesive to "wet out" the surface better, increasing the contact area and forming a strong Final Bond.
A recommended pressure range is 15-30 PSI (pounds per square inch).
6.Allow for Cure Time:
Most Pressure-Sensitive Adhesives (PSA) require a certain Cure Time to reach their maximum Final Adhesion. Typically, rubber-based adhesives may require 24 hours, while high-performance acrylic-based adhesives might need up to 72 hours. During this period, avoid applying heavy loads or peel forces to the bonded area.
Table 1: Recommended Cure Time for Different Adhesive Types
| Adhesive Type | Recommended Cure Time | Percentage of Max Adhesion (24 hours) |
| Rubber-based Adhesive | 24 hours | 80% - 90% |
| Acrylic-based Adhesive | 72 hours | 60% - 70% |
| Specialty High-Strength Adhesive | 72 - 168 hours | 50% - 60% |
| Note: These are typical values; actual results are influenced by ambient temperature, humidity, and surface material. | ||
1.Temperature Considerations: The ideal installation temperature is usually between 18°C - 38°C (65°F - 100°F). In cold environments, adhesive tackiness can significantly decrease; it's advisable to pre-warm both the tape and the surface to a suitable temperature.

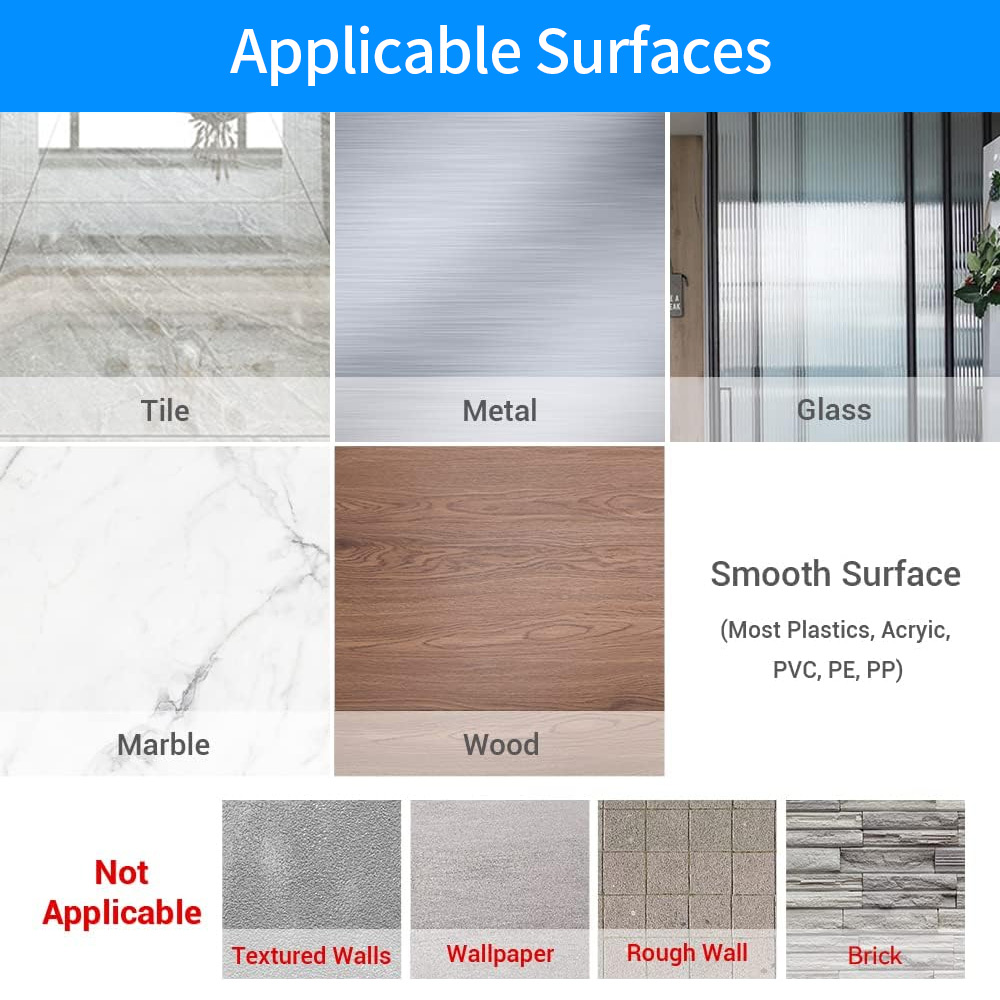

a.High Surface Energy (HSE) surfaces (e.g., metals, glass, ceramics, hardwoods) generally bond well with most adhesives.
b.Low Surface Energy (LSE) surfaces (e.g., certain plastics like PE, PP, Teflon) require specific High-Tack Acrylic Adhesives or custom Specialty Adhesives.
3.Weight Bearing Capacity: The load-bearing capacity of hook and loop tape is primarily determined by its Shear Strength. For vertical hanging applications, Peel Strength also needs to be considered.
Table 2: Typical Load Capacity Examples for Different Strength Hook and Loop Tapes
| Bond Type | Typical Uses | Shear Strength per sq inch (PSI) | Vertical Load per sq inch (lbs) |
| Light Duty (Regular) | Posters, remote controls | 10-15 | 0.5 - 1.0 |
| Medium Duty (Enhanced) | Small tools, decorative art | 20 - 30 | 1.0 - 2.5 |
| Heavy Duty (Industrial) | Electronic devices, industrial components | 40 - 60+ | 2.5 - 5.0+ |
| Note: Actual load capacity is influenced by various factors such as bonding area, surface material, ambient temperature, and peel angle. | |||
As a professional supplier of hook and loop tape, JieHuan is dedicated to providing high-quality, high-performance products and comprehensive solutions to our customers. Our product advantages include:
Excellent Adhesion Performance: JieHuan's hook and loop tape utilizes advanced adhesive technology, ensuring reliable bonding on various surfaces for both initial tack and final adhesion.
Diverse Selection: We offer a wide range of materials (Nylon, Polyester), adhesive types (rubber-based, acrylic-based, specialty adhesives), and functionalities (Flame Retardant, High-Temperature Resistant, Waterproof) for our hook and loop tape.
Customization Services: JieHuan provides Custom Sizes, Die-cutting, and Slitting services to ensure our products perfectly match your specific application requirements.
Strict Quality Control: We maintain a rigorous Quality Management System to ensure every roll of hook and loop tape meets industry-leading Reliability and performance standards.
By following these usage guidelines and expert knowledge, you'll be able to fully harness the potential of hook and loop tape, providing efficient and durable solutions for your products and daily needs.
