Back-to-back hook and loop straps are the most commonly mis-applied fastener in the family. They look like a cable tie, so they get used like one; they look like they stick, so the overlap length is treated as an afterthought. This article covers one thing: how to set the three variables — load, length and hook-and-loop build — and how to verify them.
Back-to-back means both faces of the same strap can fasten: wrap it once and it closes on itself, with nothing else to stick it to. Three common builds:
Hook and loop on one strap (same-face): one face hooks, the other loops, so it closes directly;
Loop on both faces plus a moulded tab: both faces are loop, and a shaped tab (for example a cat-head tab) folds back onto the loop;
Moulded-hook back-to-back: the hook face is injection-moulded, giving a thinner profile and a more regular hook form.
This is not the same thing as adhesive-backed hook and loop. Adhesive tape sticks onto a surface; a back-to-back strap wraps around something. Load path, failure mode and selection logic are all different — which is why selecting one like an adhesive tape usually ends with a strap that is too narrow and an overlap that is too short.
Related products: Back-to-Back Solutions · Back-to-Back Hook and Loop Tape · Back-to-Back Cable Tie · Back-to-Back Cat-Eye Fastening Strap
In a wrapped bundle the strap mainly carries shear (the two faces pulled along each other), while peel appears only at the moment it is opened. Their capacities are far apart:
Shear: high capacity — this is the working direction in a bundle;
Peel: low capacity — which is why pulling a strap away from the surface is always easier than pulling it along itself.
So do not substitute a back-to-back strap for a cable tie where the joint carries weight. Its job is cable management, bundling, positioning and storage — not load-bearing suspension.
Variable | What it decides | How to set it |
|---|---|---|
Width | Shear-carrying area | Wider for heavier or thicker bundles |
Length | Maximum bundle diameter + overlap | Length = bundle circumference + overlap allowance |
Overlap | Slip resistance | Insufficient overlap is the number-one cause of slipping, so err long |
A practical rule: keep the overlap at least equal to the strap width. Two or three millimetres of overlap is not a joint.
Build | Character | Typical use |
|---|---|---|
Hook one side, loop the other, closes on itself | Cable bundling, home storage | |
Fold-back closure, freely cuttable, cable-friendly | Server-room cabling, harness labels, garden ties | |
Moulded-hook back-to-back | Regular hook form, thin profile, high strength | Precision harnesses, tight spaces |
Adjustable overlap for large diameters | Large-diameter bundling, equipment feeds |

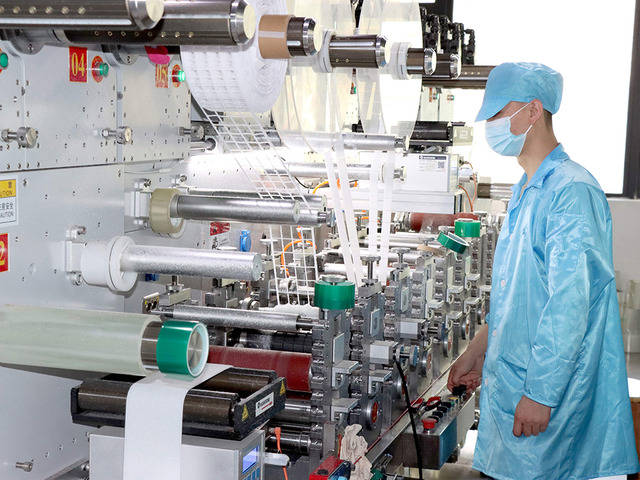

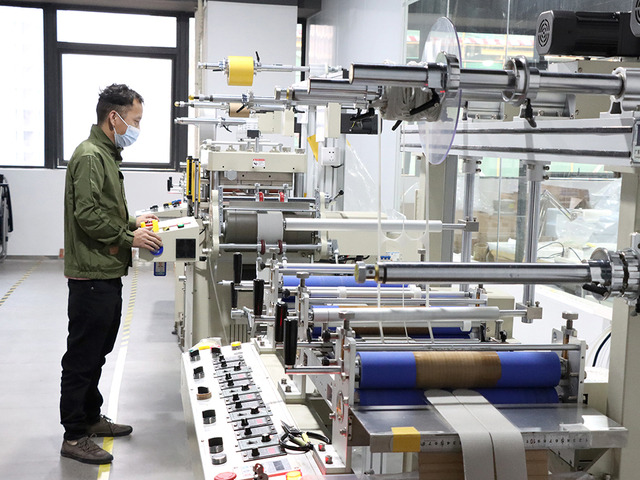

In-house production — the material web passing the die-cutting station, where cat-head tabs and profiled strap shapes are punched to form.
Using it as a load-bearing replacement for a cable tie — hook and loop shear capacity is finite, there is no positive lock, and it releases once exceeded;
Too little overlap — a short joint opens as soon as the load goes off-centre, and it is the most frequent cause of rework on site;
Ignoring degradation over open-close cycles — repeated hook engagement pills and flattens the loop pile, so peel strength falls; life must be assessed by cycle count;
Ignoring temperature and flame-retardant requirements — automotive harnesses and server rooms carry explicit requirements; confirm the material before selecting the build.
"it sticks" is not a specification. Get numbers:
Shear strength — tested to ASTM D5169 (dynamic shear method);
Peel strength — tested to ASTM D5170 ("T" peel method);
Life — open-close cycles on a hook and loop fatigue tester, reporting peel/shear retention after cycling;
Environment — high/low temperature, humidity and weathering re-tests matched to the real working conditions.
In-house testing — tensile and peel tester used for shear and peel strength measurement.

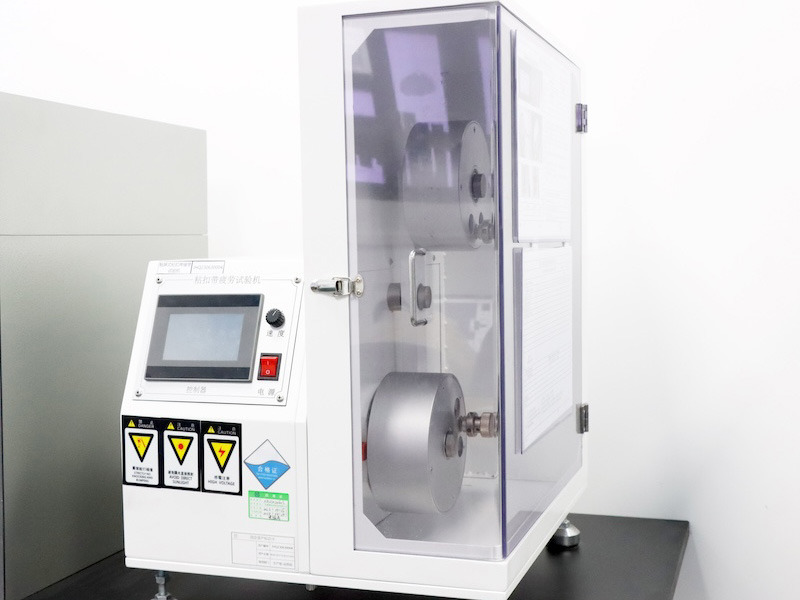

In-house testing — hook and loop fatigue tester used for open-and-close life-cycle testing.
Sampling checklist: bundle diameter and cable weight / target width and length / hook-and-loop build / target overlap / shear and peel data / open-close life / temperature and flame-retardant requirements / appearance and hand feel (does it abrade the cable).
Need sample data? Jiehuan runs its own heat-sealing, moulded-hook and PUR lamination lines plus in-house testing equipment. Send us your bundle diameter, cable weight and working environment, and we will return sampling data against the checklist above.
