● Unraveling the Mystery of Hook and Loop Tape: How It Works and Its Applications
Hook and loop fasteners, commonly known as Velcro or touch fasteners, are ubiquitous innovative fastening solutions in our daily lives. From apparel and footwear to aerospace, their unique mechanical principles and versatility make them an indispensable component in various products.
Unveiling the Working Principle

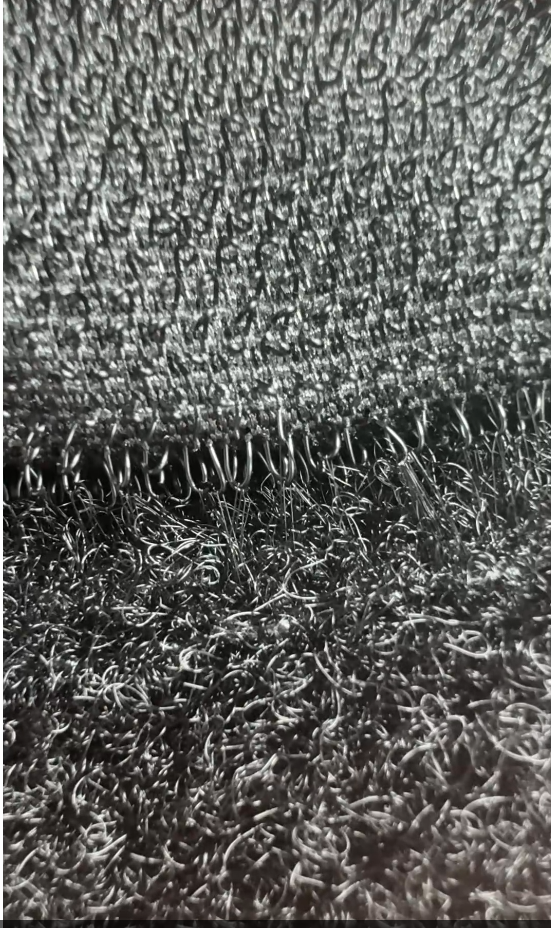

The secret to hook and loop tape lies in its simple two-component structure. It consists of two fabric strips: the Hook Side and the Loop Side.
Hook Side: This part is typically composed of tiny, rigid "hooks" made from synthetic fibers like nylon or polyester. These hooks can be J-shaped, mushroom-shaped, or bent hooks, designed to provide optimal gripping power. The density and shape of the hooks are crucial factors determining Peel Strength and Shear Strength. For instance, hook and loop fasteners used in heavy-duty applications might contain as many as 300 mushroom-shaped hooks per square inch, providing a shear strength of up to 10 lbs/sq inch.
Loop Side: This side consists of countless soft "loops" or "circles," also made from nylon or polyester. When the hook and loop sides are pressed together, the hooks engage with the loops, forming a secure mechanical bond. This bond is repeatable, which is a unique advantage of hook and loop fasteners compared to traditional adhesives.
Engagement Depth: The extent to which the hooks penetrate the loops; deeper engagement results in a stronger bond.
Number of Engaged Hooks: The quantity of hooks and loops participating in the bond per unit area; more engagements lead to greater strength.
Material Elasticity and Resilience: The elasticity of materials like nylon and polyester allows the hooks to deform slightly under stress and then recover, ensuring performance through repeated openings and closings.

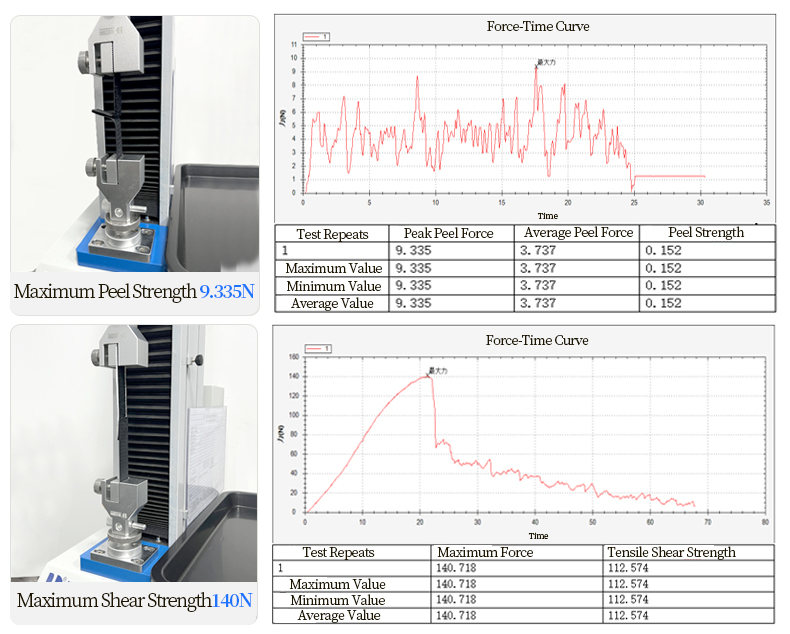

Industry Terminology and Performance Metrics
In the hook and loop industry, we typically focus on the following key performance indicators:
| Performance Metric | Definition | Common Units |
| Peel Strength | The force required to separate the hook and loop sides. | lbs/inch or N/cm |
| Shear Strength | The force required to slide the hook and loop sides apart in a planar direction. | lbs/sq inch or Pascals (Pa) |
| Cycle Life | The number of times the hook and loop can be opened and closed before significant performance degradation. | Cycles |
| Flame Retardancy | The material's ability to resist combustion. | Complies with UL94 or other fire ratings |
| Weather Resistance | The material's ability to maintain performance under various environmental conditions (e.g., UV, humidity). | No specific unit, typically described by test results |
For example, a high-quality hook and loop fastener for apparel might have a cycle life of up to 5,000 cycles, while industrial-grade products may require higher peel strength (e.g., greater than 2.0 lbs/inch) and shear strength (e.g., greater than 10.0 lbs/sq inch).
Apparel and Footwear: As an alternative to zippers and buttons, offering ease of wear and removal.
Healthcare: For bandages, braces, and orthotics, providing adjustable support.
Automotive Industry: For interior fastening and wire harness management.
Aerospace: As lightweight fastening solutions, reducing the need for rivets and bolts.
Industrial Applications: For cable management and heavy-duty fastening.
In recent years, the hook and loop industry has also seen continuous innovation, such as the development of thinner, lighter, and more adhesive Adhesive-backed Hook and Loop tapes, as well as specialized hook and loop materials for extreme environments, like High-temperature Hook and Loop or Water-resistant Hook and Loop. These innovations have further expanded the application boundaries of hook and loop fasteners.
Do you have a specific application in mind where you'd like to explore how hook and loop fasteners could be utilized?
